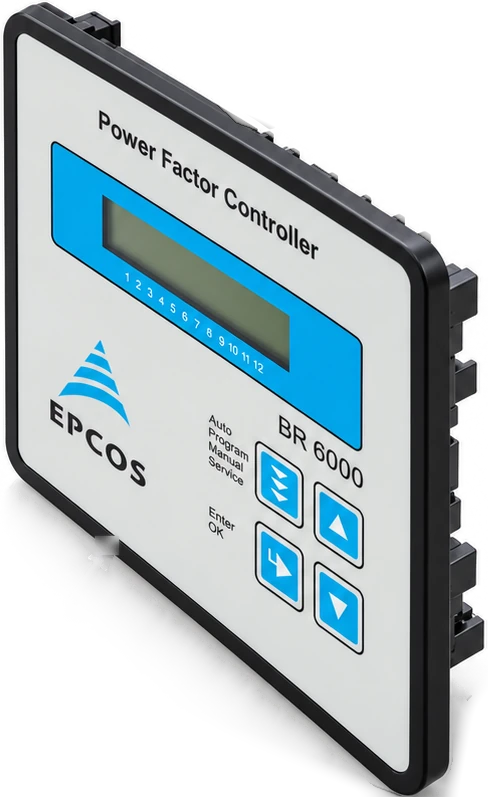

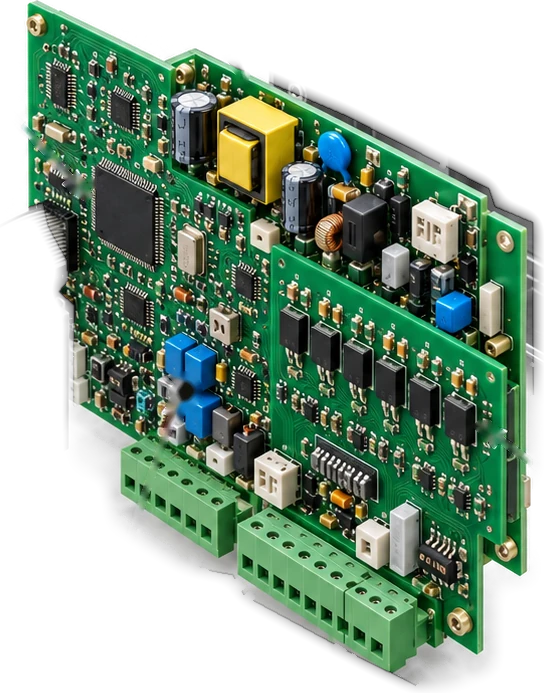

Exploded view
شمارهها فقط برای شناختن اجزا در همین تصویرند و شمارهٔ قطعهٔ سازنده نیستند.
Maker's file

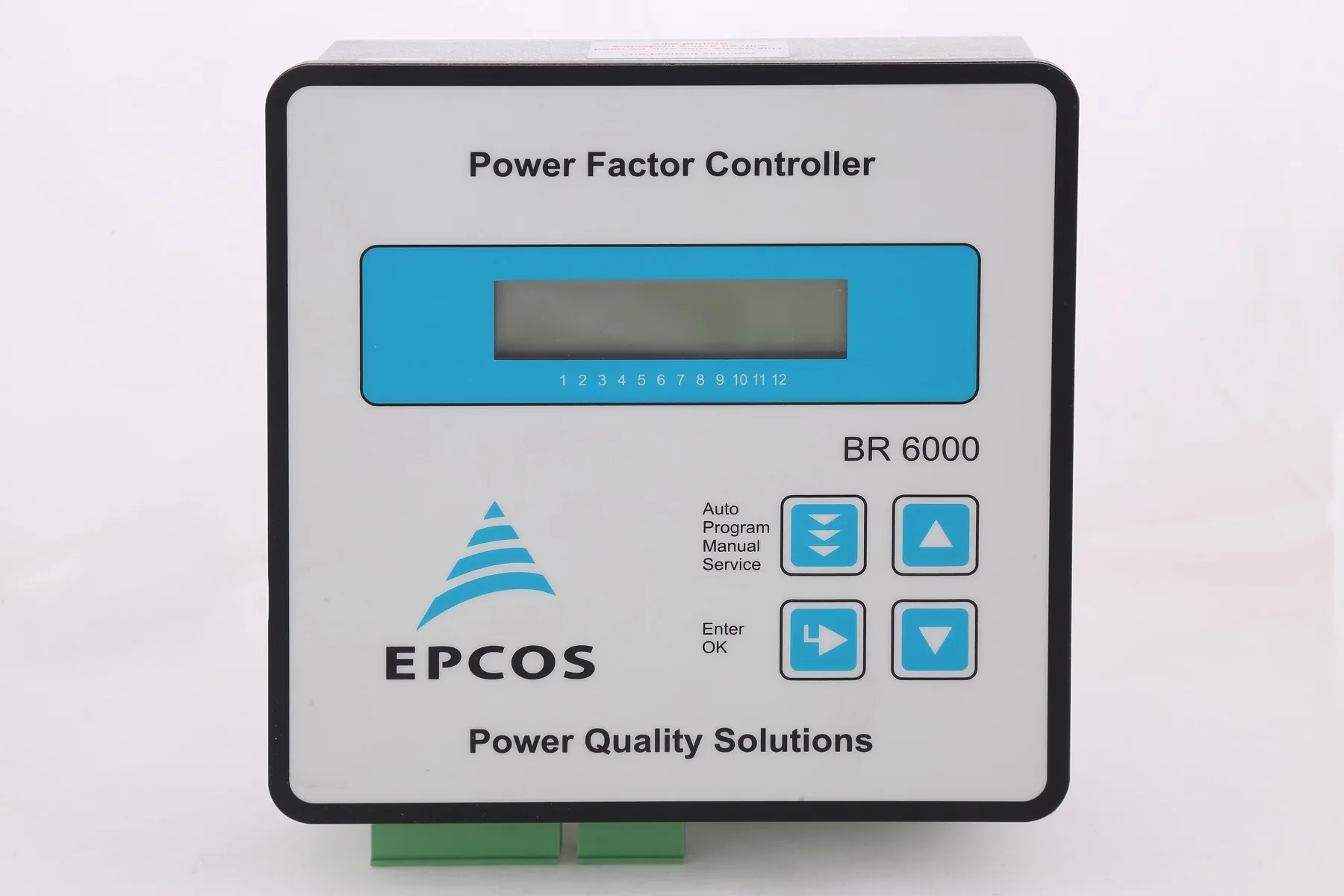

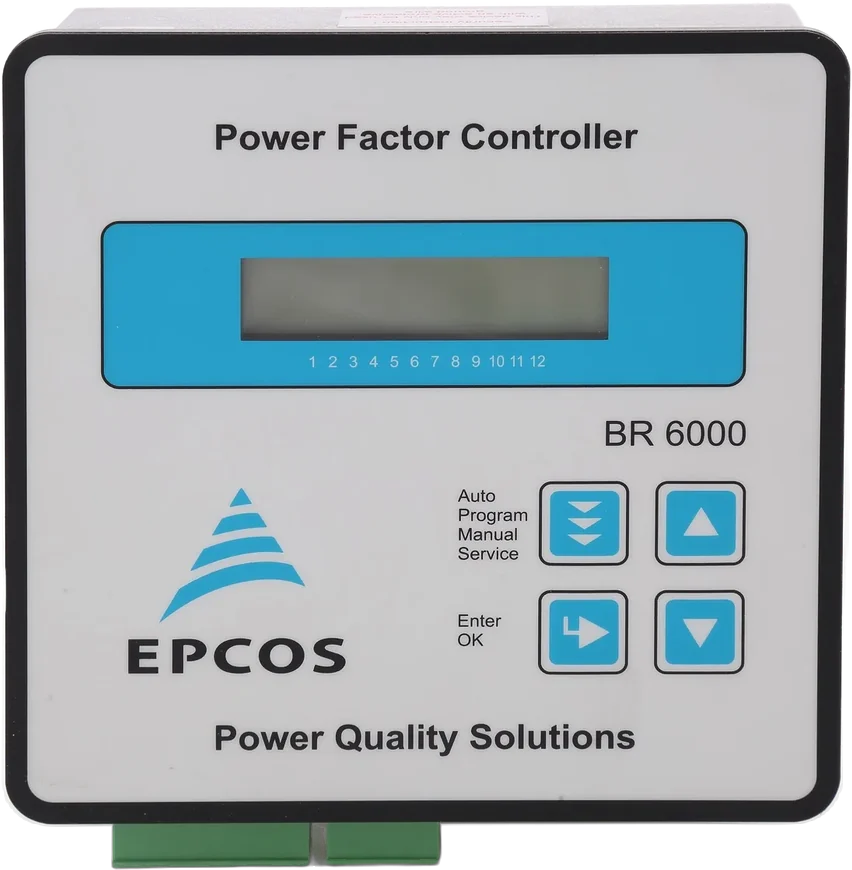

Film capacitors – Power Factor Correction / Power Factor Controller
این دیتاشیتِ خودِ همین محصول است.
Specifications
| Features | |
|---|---|

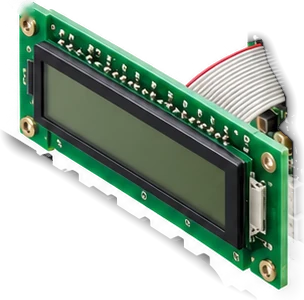

| Display | - Large and multifunctional LCD (2 x 16 characters) - Graphic and alphanumeric - LCD illumination |
| System parameters displayed | - System voltage (V AC) - Reactive power (kvar) - Active power (kW) - Frequency - Apparent power (kVA) - Apparent current (A) - Temperature (°C / °F ) - Real-time cos - Target cos - Switchover cos-/tan- |
| Alarm output | - Insufficient compensation - Overcompensation - Undercurrent - Overcurrent - Overtemperature - Threshold value programmable - Internal error storage nd - 2 signal relay random - Triggering time programmable |
| Recall recorded values | - Maximum voltage, (Vmax) - Maximum reactive power, Q (kvar) - Maximum active power, P (kW) - Maximum apparent power, S (kVA) - Maximum temperature (°C) |
| Dynamic PFC | - Direct triggering of thyristor modules series TSM |
| Technical data | |
| Weight | 1 kg |
| Case | Panel-mounted instrument, 144 x 144 x 55 mm (cut out 138 x 138 mm) |
| Ambient conditions | |
| Over-voltage class | III |
| Pollution degree | 2 |
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -20 ... +75 °C |
| Sensitivity to inference (industrial areas) | EN55082-2.1995 |
| Spurious radiation (residential areas) | EN55011 10.1997 |
| Safety guidelines | IEC61010-1:2001, EN61010-1:2001 |
| Mounting position | Any |
| Humidity class | 15 … 95% without dew |
| Front plate | IP54 according to IEC60529 |
| Rear side | IP20 according to IEC60529 |
| Supply voltage | 110 … 230 V AC, 50 and 60 Hz power lines |
| Target cos | 0.3 inductive to 0.3 capacitive adjustable |
| Switching and discharge time range | 20 … 1000 ms |
| Number of control series | 20 series preset + control series editor for free programming |
| Control modes | - Series switching (LIFO), - circular switching (FIFO), - self-optimized intelligent control mode |
| Measurement voltage range | 30 ... 525 V AC (L-N) or (L-L) |
| Fundamental frequency | 50 and 60 Hz |
| Measurement current (CT) | x/5 and x/1 Ampere possible |
| Minimum operating current | 40 mA / 10 mA |
| Maximum current | 5.3 (sinusodial) < 15 ms |
| Number of outputs | 6 |
| Switching voltage/power | 10 … 24 V DC |
| Alarm relay | Potential-free contact (max. 250 V, 6 A) |
